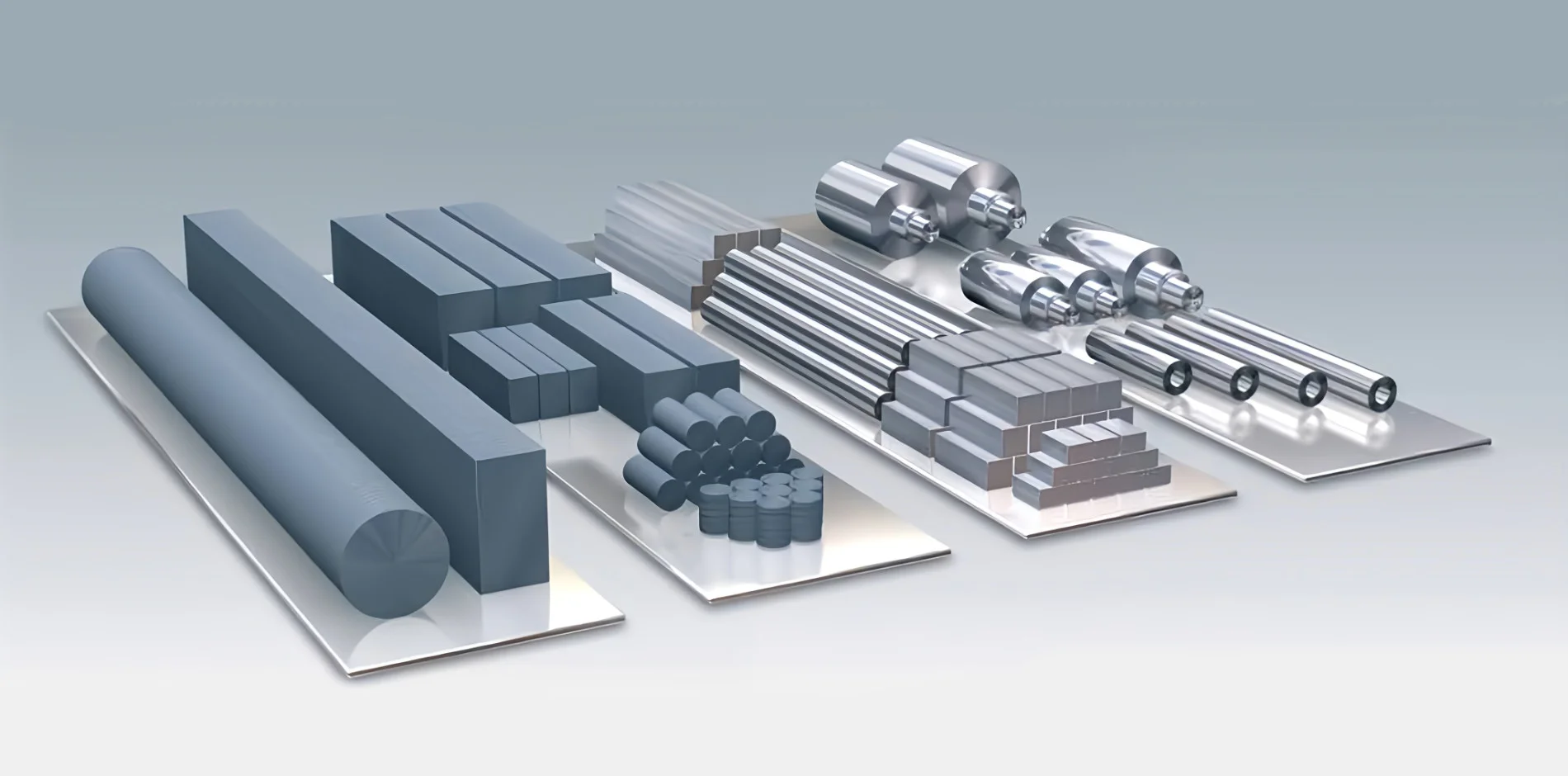

[Translate to Englisch:] Strangguss, Bearbeitungstiefe, roh, vorbearbeitet, gesägt, fertigbearbeitet, rund, vierkant

Free choice of vertical range of manufacture

raw | sawn | pre-machined | finished

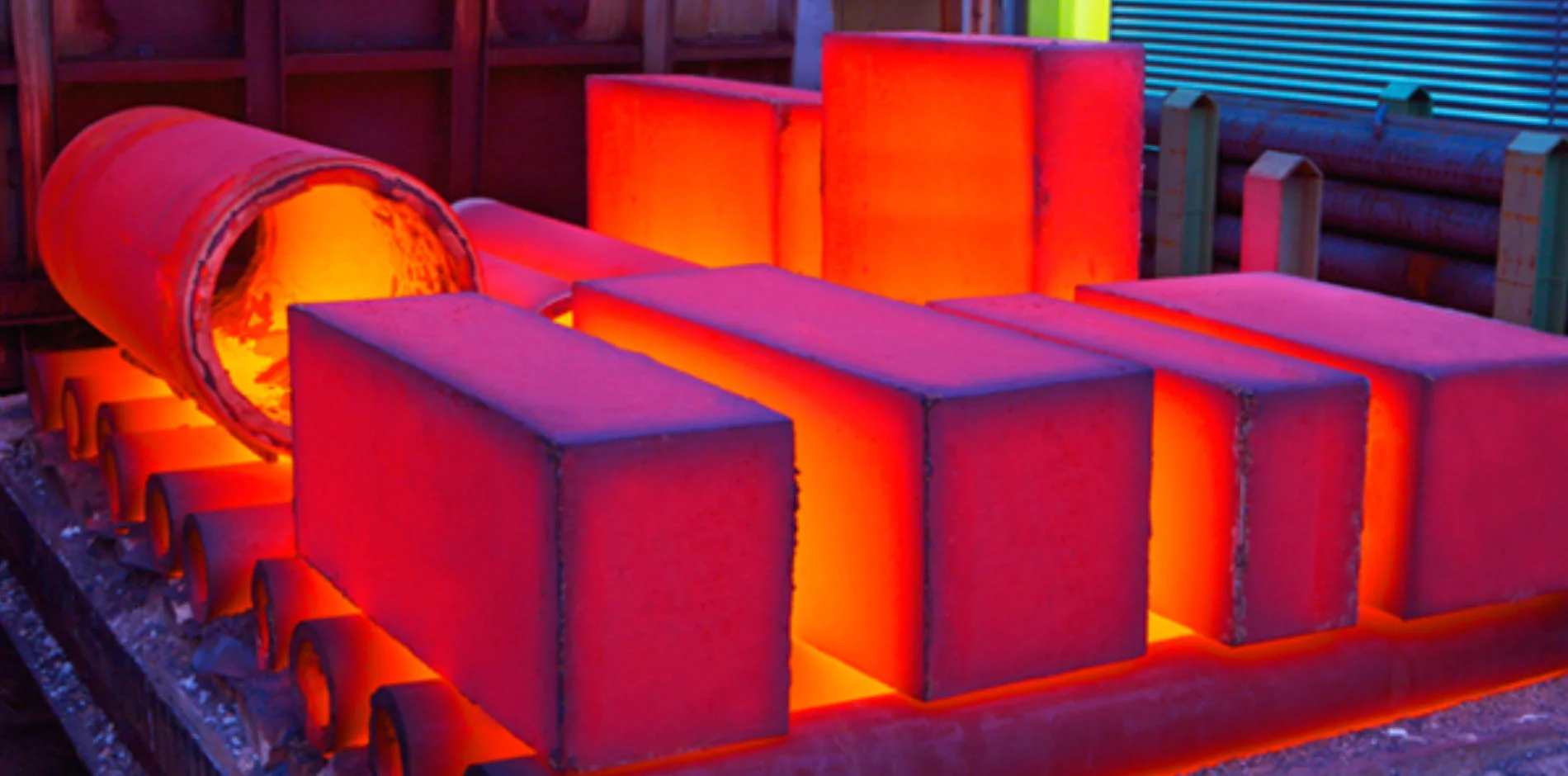

[Translate to Englisch:] Wärmebehandlung, Strangguss Produktion rund Rundstange Strangguss roh, Strangguss Büchse, Hydraulikguss, Strangguss Block, Strangguss Vierkant, Stranguss Vierkantstange, Strangguss geschält

Get the maximum out of it

The targeted heat treatment of continuous castings maximises strength and wear resistance.

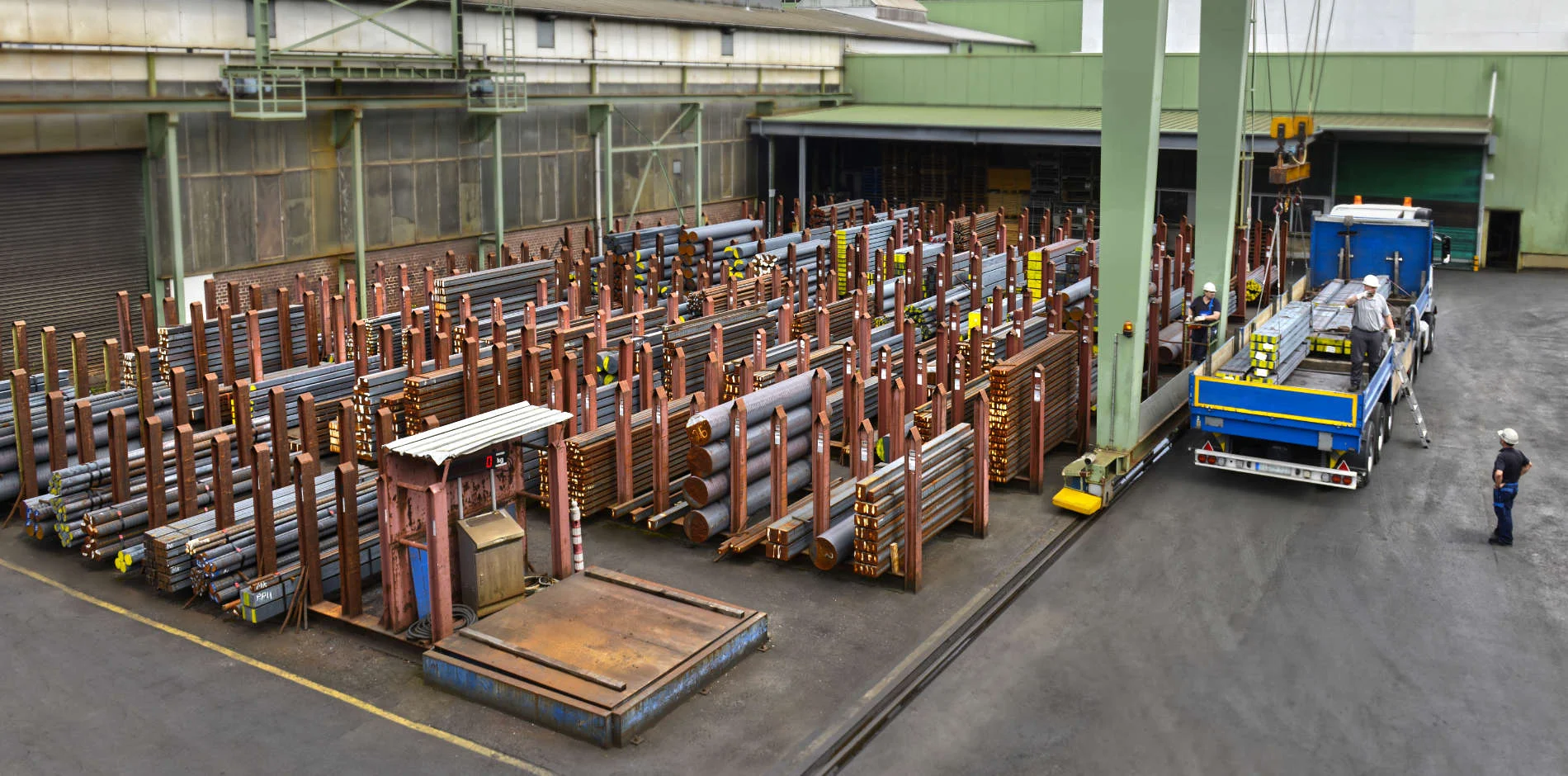

[Translate to Englisch:] Strangguss Lager Verladung Gontermann-Peipers

Available at any time!

We keep all common standard dimensions in stock for you!

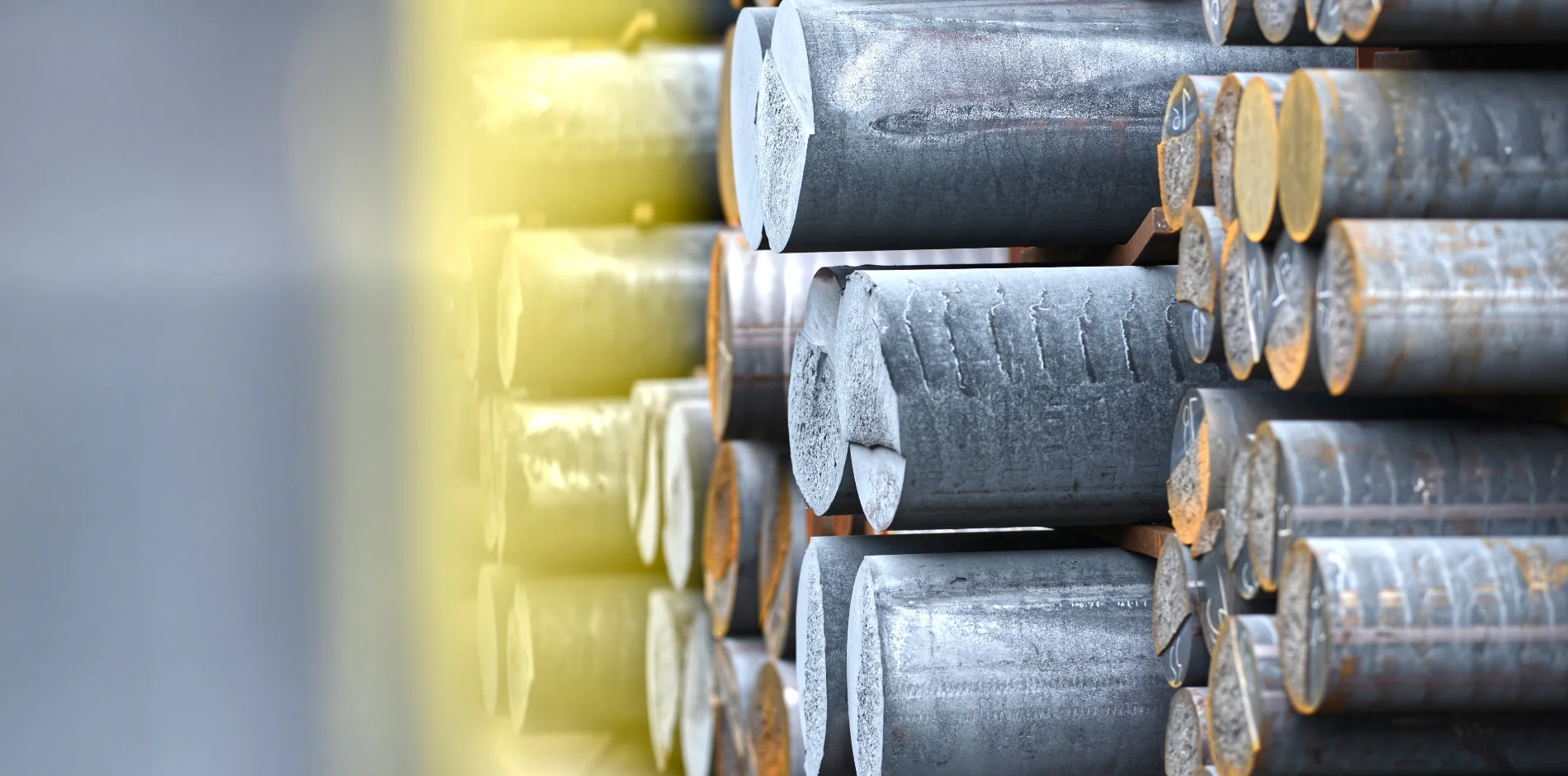

[Translate to Englisch:] Strangguss Lager Rundstange roh Gontermann-Peipers

Anything but standard!

Special dimensions, customised cross-sections, variety of materials: challenge us!

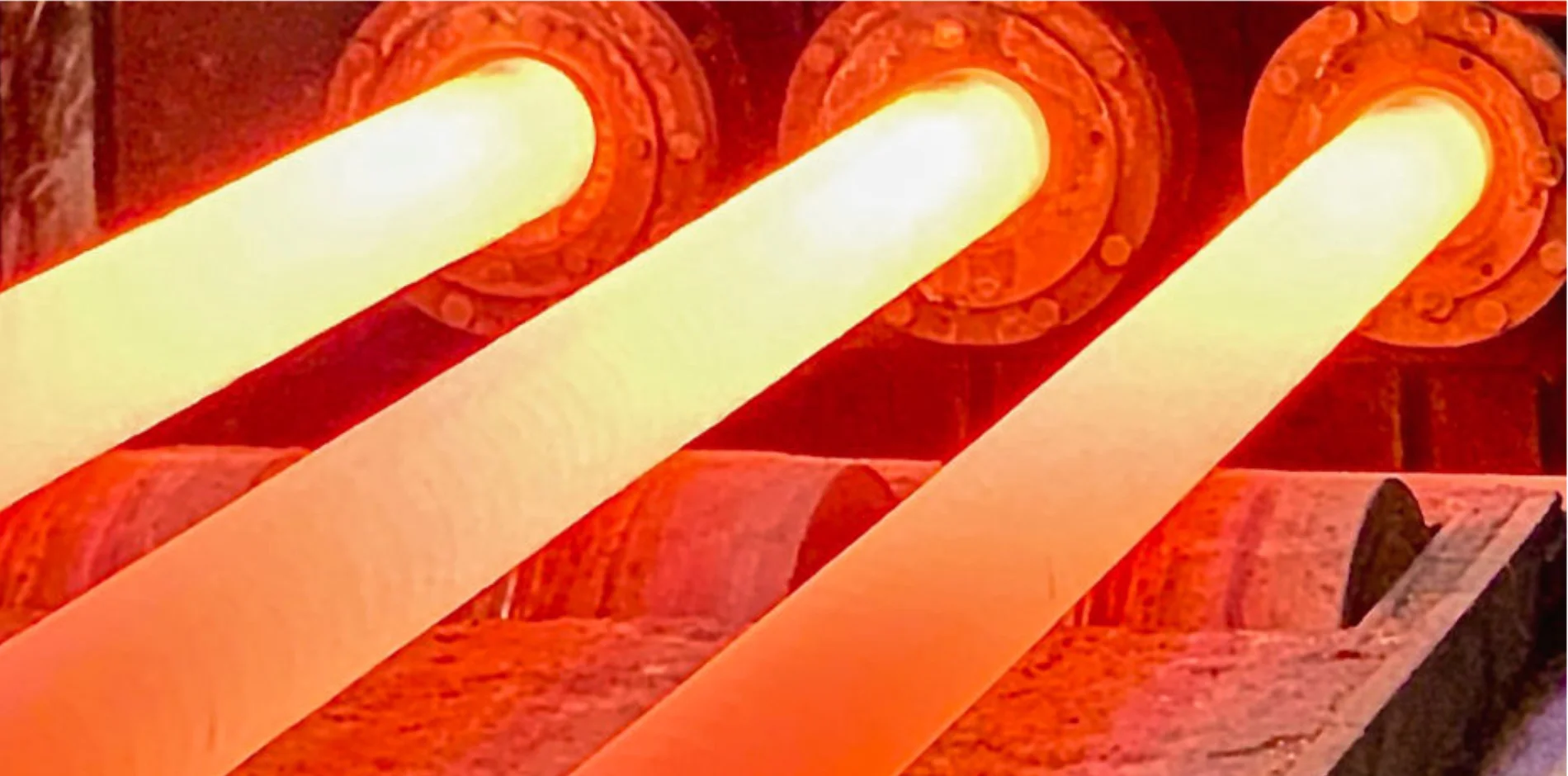

[Translate to Englisch:] Strangguss Produktion rund Rundstange Strangguss roh, Strangguss Büchse, Hydraulikguss, Strangguss Block, Strangguss Vierkant, Stranguss Vierkantstange, Strangguss geschält

Multi-talent continuous casting

This product impresses with its wide range of possible applications!

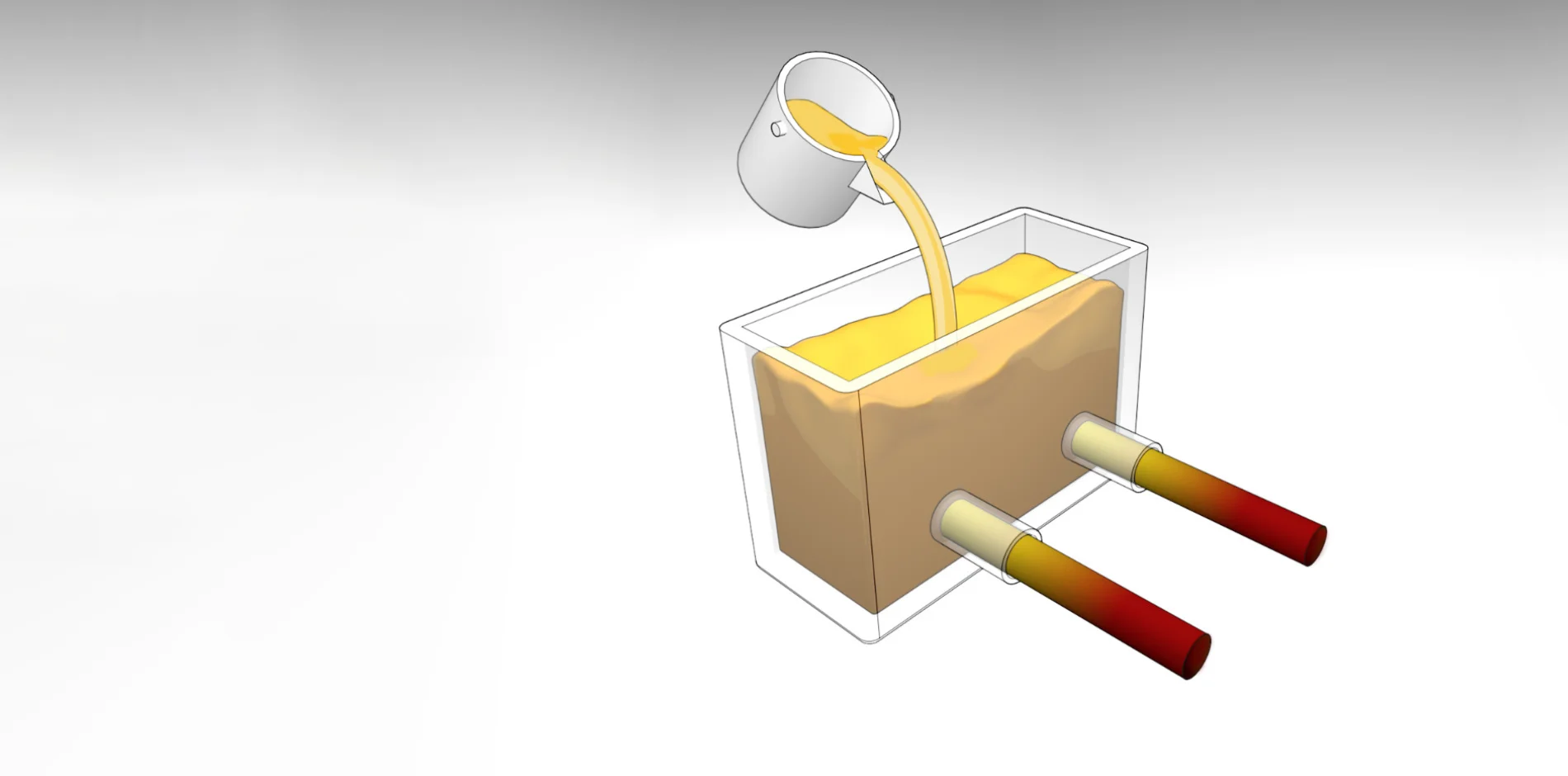

[Translate to Englisch:] Strangguss Gießprozess Gontermann-Peipers

We do everything for quality!

Continuous further development and monitoring of processes

continuous casting

The quality of the continuous casting used is of strategic importance. Take advantage of the cost-cutting potential it offers. Continuous casting from Gontermann-Peipers with its dense and fine-grained structure offers you quality-stable, homogeneous and isotropic material properties with excellent mechanical characteristics.

For machining, this means

  • high dimensional accuracy
  • batch accuracy
  • process reliability
  • short machining times


Continuous casting heat treatment


The targeted heat treatment of continuous castings also increases the strength and wear resistance of the finished product. Further advantages of tempering continuous castings are

  • Extensive freedom from stresses
  • Increased toughness for ductile materials


Continuous casting bearings

Available at any time: In addition to a well-stocked warehouse with proven standard dimensions, we also offer you special dimensions, customised cross-sections and other materials. In our online shop, you also have the option of checking stock levels and calling them up directly.


Depth of production

You also have a free choice of continuous casting production depth:

  • raw
  • sawn
  • pre-machined
  • finished-machined


Multi-talented continuous casting

When high demands are placed on quality and durability, continuous casting from GP is the ideal starting material. You will find it in many different forms:

  • in pumps and compressors
  • in hydraulic systems
  • in mechanical engineering
  • and in drive technology


Customised products

Let our experts advise you on the extensive benefits of continuous casting. We will work with you to develop customised solutions according to your requirements.

[Translate to Englisch:] Strangguss Produktion Deutschland, Strangguss Rundstange, Strangguss rund, Strangguss roh, Strangguss Büchse, Hydraulikguss, Strangguss Block, Strangguss Vierkantstange, Strangguss vierkant, Strangguss geschält

ANDREAS TEUTENBERG

Head of Sales Cast Products

Phone.: +49 271 / 60 - 839
Fax: +49 271 / 60 - 300
Email

MATERIALS


Cast iron with lamellar graphite according to standard EN 16482
EN-GJL-250C
EN-GJL-300C
EN-GJL-HB150


Cast iron with spheroidal graphite according to standard EN 16482
EN-GJS-400-15C
EN-GJS-400-18LT
EN-GJS-500-14C
EN-GJS-600-3C


Special materials for example
EN-GJS-400-18C-LT

Processing Options


Sawing
Lengthwise and crosswise - all standard dimensions

Peeling
15 - 105 mm Ø up to 4,150 mm length (for automatic bar machines)

Turning
105 - 650 mm Ø up to 3,150 mm length

Deep hole drilling from solid bars
70 - 210 mm Ø up to 1,600 mm length

Milling
20 - 650 mm edge length and 1,050 to 3,150 mm length depending on cross-section

Special dimensions and customised cross-sections on request

[Translate to Englisch:] Pumpen und Kompressoren aus Strangguss

PUMPS & COMPRESSORS

Our wide range of geometries and materials enable optimum hardness, wear resistance and freedom from vibration for the transport of gases or for vacuum generation in technical plant engineering.

Mehr Erfahren

[Translate to Englisch:] Strangguss roh, gesägt, vorbearbeitet Gussprodukte, Gießerei, Guss, Maschinenbau, Verbundguss, Härte, Wärmebehandlung, Dichtigkeit,  Blöcke, Bauteile, Gusseisen,
Continuous casting raw, sawn, pre-machined
[Translate to Englisch:] Strangguss Vorbearbeitete Buchsen für Pumpen und Kompressoren
Pre-machined sleeves
[Translate to Englisch:] Strangguss Einbaufertige Zylinderlaufbuchsen für Kompressoren und Motoren
Ready-to-install cylinder liners for compressors and engines
[Translate to Englisch:] Strangguss für Hydraulik-Anwendungen

Hydraulic engineering

Our special casting processes and materials enable control blocks with a safe and compact system design and at the same time cost-effective production.

Read more



Continuous casting raw, sawn, pre-machined
[Translate to Englisch:] Strangguss vierseitig gefräst
4-sided milled bars and blocks
[Translate to Englisch:] Strangguss seitig bearbeitete Blöcke
6-sided machined blocks
[Translate to Englisch:] Strangguss für den Maschinenbau

Mechanical engineering

Excellent thermal conductivity, failure tolerance and vibration-absorption properties make cast materials the first choice for dependable, cost-efficient machine parts.

Read more



[Translate to Englisch:] Strangguss Maschinenbau Vormaterial zur spanenden Bearbeitung
Pre-material for machining
[Translate to Englisch:] Strangguss für den Maschinenbau Maschinenenteile
Machine parts
[Translate to Englisch:] Strangguss für Antriebstechnik

Drive System components

Our versatile range of material grades and our expertise in double-pour casting assure perfect quality in terms of ruggedness and lightweight design of the component.

Read more



[Translate to Englisch:] Strangguss Antriebstechnik Ventilführungen Motoren
Valve guides for engines
[Translate to Englisch:] Strangguss Antriebstechnik Antriebswellen im Schienenverkehr
Drive shafts for rail applications
[Translate to Englisch:] Strangguss Antriebstechnik Lagerschalen und Führungsanlagen
Bearing shells and guide bearings
